2019 Chevrolet Silverado 6500HD GVWR23500, Duramax 6.6L V8 Turbo Diesel engine, Allison automatic transmission, spring suspension, hydraulic brakes, steel rims 19.5 tires, 3 passenger gray vinyl interior, power windows and locks, A/C, AM/FM/Bluetooth radio.



URBAN FORESTRY UNIT WITH ALUMINUM CHIPPER BOX

The Urban Forestry Unit is the only Class 5 bucket truck with a chipper box in the tree care industry with a reach of 50 feet and it's now available with a lightweight aluminum chipper box. Those in the tree care industry already love the Urban Forestry Unit because of its size and weight and now its getting even lighter. The lighter weight means less damage to yards and property making this an ideal solution for those in the urban forestry industry, said Loren Top, Dur-A-Lift's national sales manager. Height to bottom of platform: 45 Working height: 50 Side reach: 30 Stowed travel height: 11.3 Basket capacity: 350# Articulating arm travel: 0 to 82 Main boom travel: -25 to 78 Extension travel: 122.5



STANDARD FEATURES CONTROLS

Proportional controls Lower controls with override located at the turntable Engine start/stop from the basket Individual control levers HYDRAULIC SYSTEM Rated pressure is 2200 PSI Operating pressure is 2000 PSI Opecenter hydraulic system 180 rotating basket MECHANICAL SYSTEM Telescoping and articulating boom action Offset main boom reduces travel height Shear ball rotation driven Fully enclosed worm gear box Non-continuous rotation 46KV category C on insulated models 24 x 24 x 42 basket 110V outlet at upper controls DTAXS OPTIONS Single hand joystick upper control Outrigger or torsiobars 12-volt DC backup Fixed basket position (side or end) Basket offered various sizes and configurations Basket liner 50 kV DTAX Main boom fiberglass inserts DTAX Chassis isolator art boom fiberglass insert DTAX Continuous rotation Tool trays of various sizes Basket and control cover Upper and lower hydraulic tool circuits Special paint color



CHIPPER BODY FEATURES

7.5 Length, 54 Side Height 7.5 Cubic Yard Capacity 3/16 Thick Sides, 1/4 Thick Floor Single Swing Rear Gate with Robust Latch Greaseless Hinges Pruning Compartment Superior Top Ventilation.

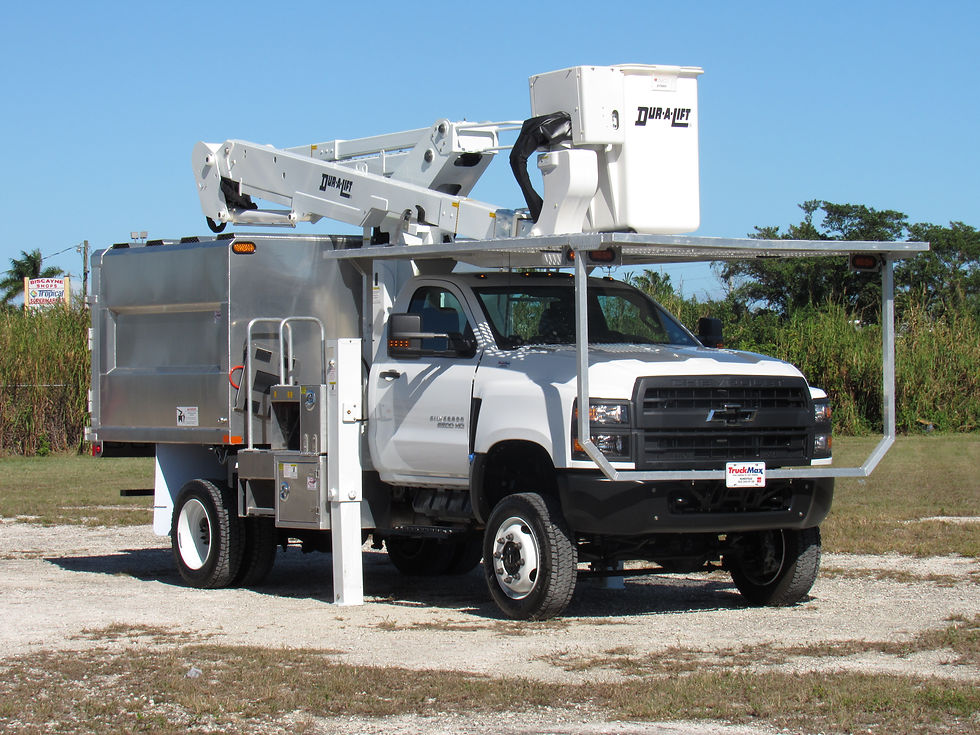

2019 Chevrolet Silverado 6500 4WD Dur-A-Lift DTAX-45FP Urban Forestry Bucket Tru

SKU: CH6500DTAX45CHIPP
Color: White
Material
Fuel
GVWR
Located at:
